Automatic Injectable Powder Filling with Rubber Stoppering

Automatic Injectable Powder Filling with Rubber Stoppering
Automatic Injectable Powder Filling with Rubber Stoppering
Product Code : 22
Brand Name : Machpro
  • Minimum Order Quantity
Trade Information
  • Main Domestic Market
  • All India, South India, Central India, North India, East India, West India, Andaman and Nicobar Islands, Andhra Pradesh, Assam, Arunachal Pradesh, Bihar, Chhattisgarh, Chandigarh, Delhi, Dadra and Nagar Haveli, Daman and Diu, Gujarat, Goa, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Lakshadweep, Madhya Pradesh, Maharashtra, Mizoram, Meghalaya, Manipur, Nagaland, Odisha, Punjab, Pondicherry, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal
Product Description

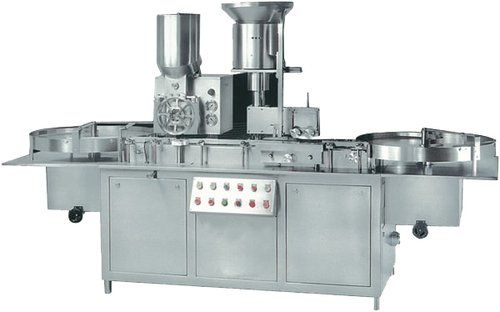

We are a highly trusted entity offering a unique and high-tech range of Automatic Powder Filling Rubber Stoppering and Sealing Machine. This machine is precisely manufactured by our meticulous professionals using optimum grade materials and advanced techniques in accordance with defined industry norms. Widely demanded in pharmaceutical, food, chemical and many others, this is used for labeling of round container which are previously filled and sealed. Furthermore, this Automatic Powder Filling Rubber Stoppering and Sealing Machine can be availed from us in diverse technical specifications at industry leading prices.

The sterilized powder is stored in powder hopper is agitated by pair of mechanical agitators for maintaining consistency and uniform bulk density. The powder wheel having eight ports rotates at the pre determined speed below the powder hopper with practically no clearance. Powder wheel consist of Piston in each port and behind the powder wheel vacuum plate is provided there is no clearance between powder wheel and vacuum plate due to back spring pressure. Precise volume of powder is sucked in to the port of powder wheel during vacuum according to the piston length different fill size can be achieved. The excess powder is doctored off by a doctor blade. Doctor blades can be adjusted from outside also without removing powder hopper. When powder wheel indexes further and remain in the port due to the vacuum till it reaches just vertically above the container. The time dose of Compressed air (Nitrogen Gas), sterilized low pressure air sequentially flushes out powder from the port of powder wheel in to the container one by one. The filled container is immediately separated on the conveyor by vial separator and moves further for Stoppering operation.

The sterilized, siliconised, rubber stoppers stored in the vibrator bowl moves to vibratory bowl and stacked vertically in the rubber stopper chute. The container is hold firmly between pair or timing belt to pickup rubber stopper from exit end of the chute. Further the container is passed between two pressing roller for tight fit fixing of rubber stopper.

Production Rate

Up to 120 Fills/Min. for single dose.
Up to 60 Fills/Min. for double dose.
Up to 40 Fills/Min. for triple dose.
Up to 30 Fills/Min. for four dose.

Fill Capacity

50 Mg to 1.5 Grms. single dose (with help of
change parts).1.5 Grms. to 6 Grms. double, triple
and four dose. Fill range depending upon vial
opening and bulk density of powder.

Fill sizes

50 mg. to 6 grms

Vial Sizes

5 ml. to 30 ml.

Rubber Stopper Diameter

20mm
